VSP6037L VeroStar™ Full GNSS Antenna with L-band

Antennas

Coverage

GPS/QZSS L1/L2/L5, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, BeiDou B1/B2/B2a/B3, QZSS L6, NavIC L5, L-Band Correction Services

Mount

Standard Survey Mount

Amplifier Gain

37 dB typ.

Connector Options

TNC Female

Back to Antennas

Overview

The VSP6037L VeroStar antenna employs Tallysman’s unique VeroStar™ technology covering the full GNSS spectrum: GPS/QZSS L1/L2/L5, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, BeiDou B1/B2/B2a/B3, QZSS L6, NavIC L5, as well as SBAS (WAAS/EGNOS/GAGAN/MSAS), and L-band correction services.

Features

  • Light, compact and very robust design
  • Very Tight Phase Center Variation (<2mm)
  • Low axial ratios from zenith to horizon
  • Low current (60mA)
  • Invariant performance from: +3 to 16VDC
  • High G/T at low elevation angles

Benefits

  •  Consistent performance across all frequency bands
  •  Broadest tracking elevation (0° – 90°)
  •  Extreme precision
  •  Excellent multipath rejection
  •  REACH, and RoHS compliant
  •  Reduced time to market

Details

The patent pending, compact VSP6037L VeroStar antenna supports the full GNSS spectrum (all constellations and signals) plus L-band correction services. The antenna provides exceptional low elevation satellite tracking with a high efficiency radiating element. The VeroStar element has a low axial ratio through all elevation angles providing strong multi-path rejection. The antenna also exhibits a very stable Phase Center Variation (PCV) and a strong PCV repeatability.

The VSP6037L VeroStar provides high receive gain over the full GNSS spectrum: Low GNSS band (1164MHz to 1300MHz) L-band correction services (1539MHz to 1559MHz) and High GNSS band (1559MHz to 1610 MHz). It has a robust pre-filtered LNA, with high IP3 to minimize de-sensing from high-level out-of-band signals, including 700MHz LTE, while still providing a noise figure of 1.6dB.

The performance of the  VSP6037L VeroStar antenna rivals all compact full band GNSS antennas but is lighter, smaller, more power efficient, more robust and very economical.

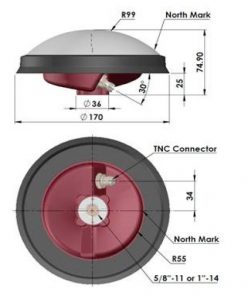

Drawings

Dimensions in Millimeters
