VC6050 VeraChoke® Full GNSS Antenna with L-Band

Antennas

Coverage

GPS/QZSS-L1, GPS/QZSS-L2, GPS/QZSS-L5, QZSS-L6, GLONASS-G1, GLONASS-G2, GLONASS-G3, Galileo-E1, Galileo-E5a, Galileo-E5b, Galileo-E6, BeiDou-B1, BeiDou-B2, BeiDou-B2a, BeiDou-B3, NavIC-L5, L-band correction services

Mount

Standard Survey Mount

Amplifier Gain

50 dB typ.

Connector Options

N-Type Female

Back to Antennas

Overview

The VC6050 VeraChoke® antenna employs Calian’s unique VeraPhase® technology covering the full GNSS spectrum: GPS/QZSS L1/L2/L5, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, BeiDou B1/B2/B2a/B3, QZSS L6, NavIC L5, SBAS (WAAS/EGNOS/GAGAN/MSAS) and L-Band correction services.

Features

  • Low axial ratio from zenith to horizon
  • Geo++ calibrated
  • Very tight phase centre variation (< 1.0 mm)
  • Low current (35 mA)
  • Invariant performance from: 2.7 to 24 VDC
  • IP67, REACH, and RoHS compliant
  • Space in housing for integrated PPP, RTK receiver or other OEM system

Benefits

  • Consistent performance across all frequencies
  • Broadest tracking elevation (0° – 180°)
  • Extreme precision
  • Excellent multipath rejection
  • Reduced time to market

Details

Ideal for high precision reference stations, the VC6050 has excellent performance across the full bandwidth of the antenna.

The VC6050 is a leader in the market providing the lowest axial ratios (horizon to horizon, over all azimuths) across all GNSS frequencies (<0.5 dB at zenith, < 3.0 dB typ. at horizon). Additionally, the VC6050 has an exceptional front to back ratios, a tight phase centre variation (PCV), and near constant phase centre offset (PCO) for all azimuth and elevation angles, over all in-band frequencies.

The VC6050 provides high-reception gain over the full GNSS spectrum and has a robust pre-filtered Low Noise Amplifier (LNA), with high third order intercept point (IP3) to minimize de-sensing from high-level out-of-band signals, including 700MHz LTE, while still providing a low noise figure.

The antenna is compatible with both large and small SCIGN radomes.

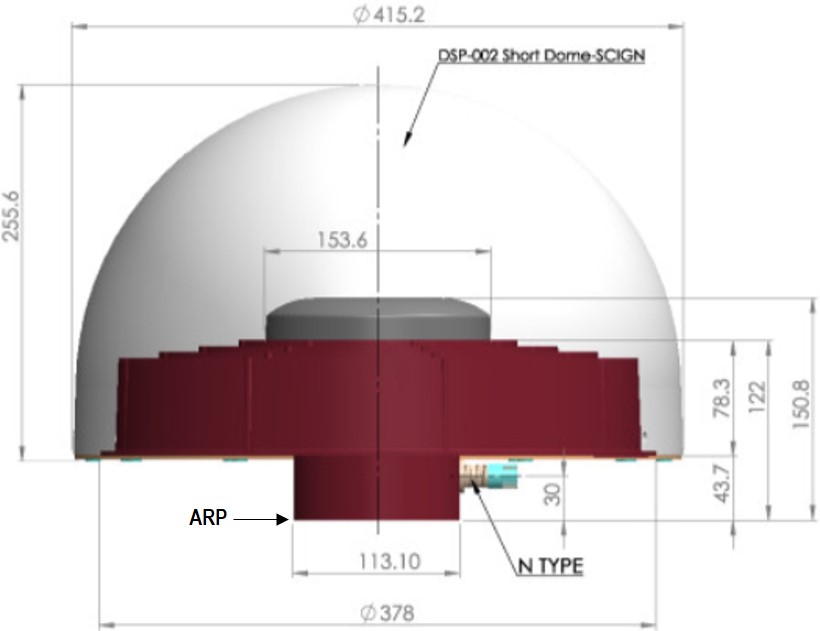

Drawings
