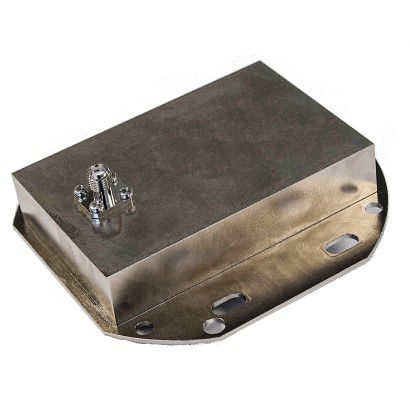

TW600 Low Noise Choke Ring Antenna Amplifier
Amplifiers, Accessories
The TW600 family of low noise amplifiers (LNA) provide a high performance amplifier upgrade for full GNSS (GPS/QZSS, GLONASS, Galileo, BeiDou) frequency choke ring antennas.
Overview
The TW600 family of low noise amplifiers (LNA) provide a high performance amplifier upgrade for full GNSS (GPS/QZSS, GLONASS, Galileo, BeiDou) frequency choke ring antennas.
Features
- Available with 35 dB or 50 dB gain
- Low current and low voltage
- Wide input voltage range: 3 to 17 Volts
- Powered via antenna coax from receiver
- 50 Ohm port impedance
- Very low noise
- RoHS and REACH compliant
Benefits
- Upgrades choke ring antennas to receive the full GNSS band or subset thereof
- High gain enables extended cable runs
- Easy to install
Details
The TW600 family of low noise amplifiers (LNA) are optimized for all GNSS bands utilized by the GPS, GLONASS, Galileo, and BeiDou satellite systems. This LNA is designed for integration into existing choke ring antennas thereby upgrading them to receive the entire GNSS band or a subset thereof.
The TW6x3 provides 35 dB of gain and the TW6x5 provides 50 dB of gain. Custom pre-filtering provides suppression of out-of-band interfering signals such as cellular LTE, Ligado, and Iridium satellite communications, while maintaining a low noise figure, high third order intercept point and small group delay.
Meeting the requirements of high performance GNSS receivers, the current consumption is less than 50mA with a 5 VDC supply.

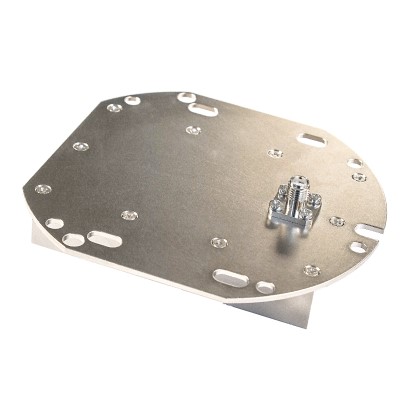

The amplifier housing is compatible with choke ring antennas manufactured by Trimble, Allen Osborne, Ashtech, and Leica (504)
Models
TW61x: All GNSS Signals (1164 -1300MHz + 1559-1610MHz)
TW62x: L1/L2, G1/G2, B1/B2, E1 + L-band (1195-1254MHz + 1525-1610MHz)
TW63x: L1/L2/L5, G1/G2/G3, B1/B2, E1/E5a+b (1164-1254MHz + 1559-1610MHz)
TW60x: All GNSS Signals + L-Band (1164-1300MHz + 1525-1610MHz)
Drawings
