TW3972E Embedded Triple Band GNSS Antenna with L-Band

Antennas

Coverage

GPS/QZSS L1/L2/L5, GLONASS G1/G2/G3, Galileo E1/E5a/E5b, BeiDou B1/B2, L-Band Correction Services

Mount

OEM / Embedded

Amplifier Gain

37 dB typ.

Connector Options

Many Options, Please Inquire

Back to Antennas

Overview

The TW3972E employs Tallysman’s unique Accutenna® technology, covering GPS/QZSS L1/L2/L5, GLONASS G1/G2/G3, Galileo E1/E5a/E5b, BeiDou B1/B2, SBAS (WAAS/EGNOS/GAGAN/MSAS), and L-band correction services.

Features

  • Very low Noise Preamp, < 2.5dB
  • Axial ratio: <2dB typ.
  • Tight Phase Center Variation
  • LNA Gain 37 dB typ.
  • Low current: 24 mA typ.
  • ESD circuit protection: 15 KV
  • Invariant performance from: +2.5 to 16VDC

Benefits

  • Ideal for triple band RTK surveying systems
  • Great multipath rejection
  • Increased system accuracy
  • Great signal to noise ratio
  • REACH and RoHS compliant

Specifications

Ideal for precision agriculture, autonomous vehicle tracking and guidance, and other applications where precision matters, the TW3972E provides superior multi-path signal rejection, a linear phase response, excellent axial ratios, and tight Phase Centre Variation (PCV).

The TW3972E features a precision tuned, twin circular dual feed, stacked patch element. The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wide-band LNA, then band-split for narrow filtering in each band and further amplified prior to recombination at the output.

Providing enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi, the TW3972E provides these additional benefits with an LNA pre-filter.

Tallysman offers custom tuning services to optimize the performance of the TW3972E for any OEM installation environment.

This product is also available in a housed version – learn about the TW3972.


Drawings

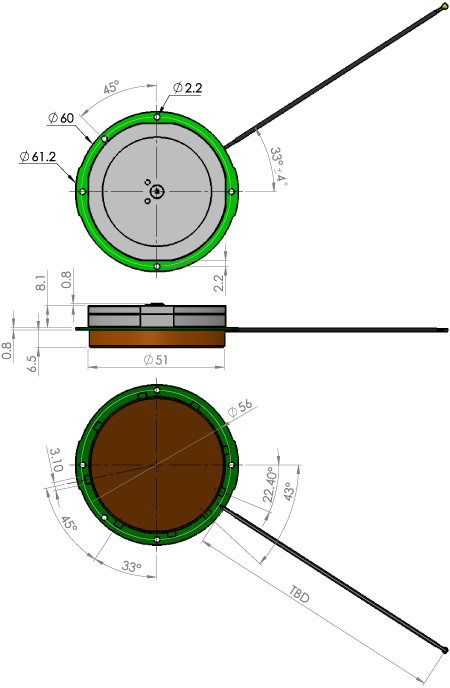

TW3xxx Embedded Drawing
Dimensions in Millimeters
