HC872EXF Embedded Dual-Band Helical Antenna + L-Band

Antennas

Coverage

GPS/QZSS-L1, GPS/QZSS-L2, GLONASS-G1, GLONASS-G2, Galileo-E1, BeiDou-B1, L-band correction services

Mount

OEM / Embedded

Amplifier Gain

28 dB typ.

35 dB typ.

Connector Options

MCX (female)

Back to Antennas

Overview

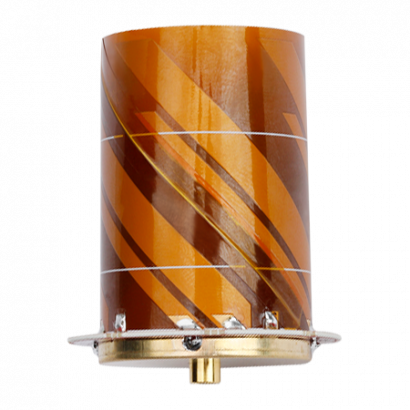

The patented HC872EXF embedded helical antenna is designed for precision positioning, covering the GPS/QZSS-L1/L2, GLONASS-G1/G2, Galileo-E1, and BeiDou-B1 frequency bands, including the satellite-based augmentation system (SBAS) available in the region of operation [WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India)] and L Band correction services coverage.

Features

  • Very low noise preamp (2.5 dB typ.)
  • Axial ratio (≤ 0.5 dB at zenith)
  • LNA gain (28 dB typ. | 35 dB typ.)
  • Low current (25 mA typ. | 31 mA typ.)
  • ESD circuit protection (15 kV)
  • Invariant performance from 2.2 to 16 VDC
  • REACH, and RoHS compliant

Benefits

  • Extremely light (8 g)
  • Ideal for RTK and PPP surveying systems
  • Excellent RH circular polarized signal reception
  • Great multipath rejection
  • Increased system accuracy
  • Excellent signal-to-noise ratio
  • Industrial temperature range
  • Extended RF Filtering

Details

Calian’s eXtended Filter (XF) antenna technology has been designed to mitigate out-of-band signals and prevent GNSS antenna saturation. The radio frequency spectrum has become more congested as new LTE bands are activated and their signals or harmonic frequencies [e.g. 800MHz x 2 = 1600MHz (GLONASS-G1)] can affect GNSS antennas and receivers. In North America, planned Ligado signals at 1525 – 1536 MHz can especially impact GNSS antennas that support space-based L-band correction services (1539 – 1559 MHz). New LTE signals in Europe [Band 32 (1452 – 1496 MHz)] and Japan [Bands 11 and 21 (1476 – 1511 MHz)] have also been observed to interfere with GNSS signals. In addition, Inmarsat satellite communication (uplink: 1626.5 – 1660.5 MHz) can also affect GNSS signals. Calian’s custom XF filtering mitigates all existing signals and new Ligado and LTE signals, enabling the antennas and attached GNSS receivers to perform optimally.

Weighing only 8 g, The HC872EXF features a precision-tuned helix element that provides excellent axial ratios and operates without the requirement of a ground plane, making it ideal for a wide variety of applications, including unmanned aerial vehicles (UAVs).

Calian provides an optional embedded helical mounting ring, which traps the outer edge of the antenna circuit board to the host circuit board or to any flat surface. Calian also provides support for installation and integration of embedded helical antennas to enable the integrator to achieve a successful installation and obtain optimum antenna performance.

For mounting instructions, visit: https://www.tallysman.com/downloads/Helical_Mounting_Instruction.pdfReplace


Specifications

Part Number: 33-HC872EXF-xx
